Tesla Powerwall Battery Storage
Your answer to increasing energy costs - store electricity safely and sustainably
combinable with any photovoltaic system
Power your home and charge your Powerwall
And use your stored clean energy at night

product characteristics Tesla Powerwall
Backup system on one phase
- 13.5 kWh usable storage capacity
- 4.6 kW power in continuous operation

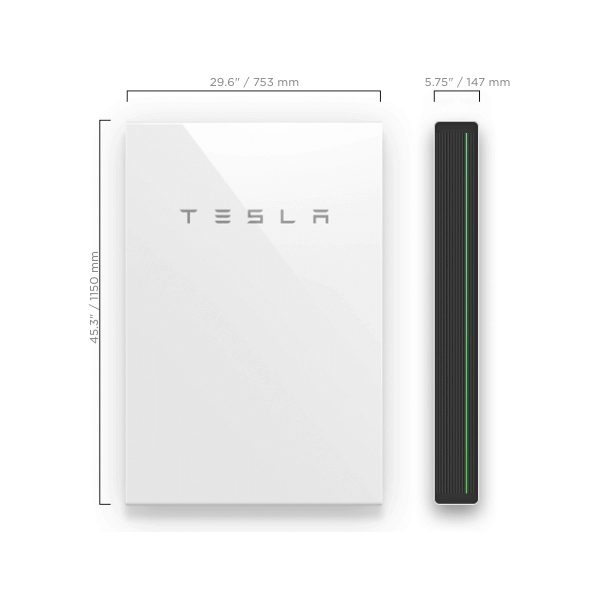

- Dimensions: 1150 x 755 x 147 mm (H x W x D)
- Weight: 114.0 kg
- Degree of protection: IP 67
- Noise level: < 40 dBA at 30°C
- 10 year product guarantee

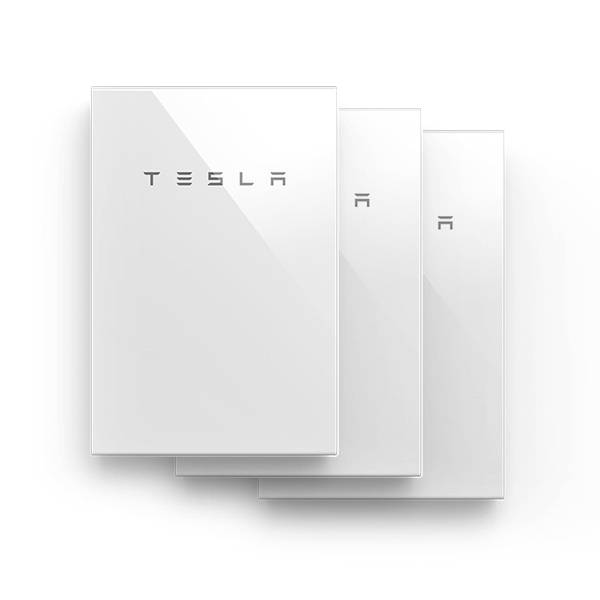

Modularly expandable
Product Benefits
- Elegant and compact design
- Floor or wall mounting, indoors or outdoors
- Ambient temperature: -20°C to 50°C
- Scalability up to 10 Powerwalls
- Backup on a phase
- Automatic all-pole mains disconnection
- Solar recharging is possible with 1-phase inverters

Compact and simple - easy integration into new and existing PV systems
- Solar Inverter
- meter cabinet
- Gateway
- electricity meter
- powerwall.
Backup power with the Tesla Powerwall Backup Gateway 2
In backup/emergency power mode, the Backup Gateway 2 controls the connection to the grid connection, detects power failures and automatically switches to backup/emergency power mode.
The Backup Gateway 2 communicates directly with the Powerwall, allowing you to monitor and adjust your home energy usage and backup/emergency reserve with the Tesla app from any mobile device.
One battery for everything
The Powerwall detects a power outage, disconnects from the grid and automatically restores power to your home in a few seconds.
With Powerwall's 4.6kW of power, your home or business keeps running almost uninterrupted.
Tesla App Monitoring - 24/7 control
control your Powerwall and track your energy consumption in real time
My home
power flow
energy use
In the Tesla app, among other things, the energy flow is illustrated. This flow of energy shows everything that happens in the house: electricity generation by the photovoltaic system, electricity flow to or from the Powerwall and the electricity fed into or taken from the grid. The values of the energy flow diagram are displayed in real time.
The history of the current flow can also be viewed using the Tesla Mobile App. To do this, any power source (photovoltaic, power wall or power grid) can be selected and a specific period of time can be called up in the bar graph that appears.
Tesla Powerwall:
- COMPACT
- EXPANDABLE
- BACKUP POWER CAPABLE
