Lead-Crystal
SSE-Energio® Lead-Crystal Battery-Storage
- Projects / References -

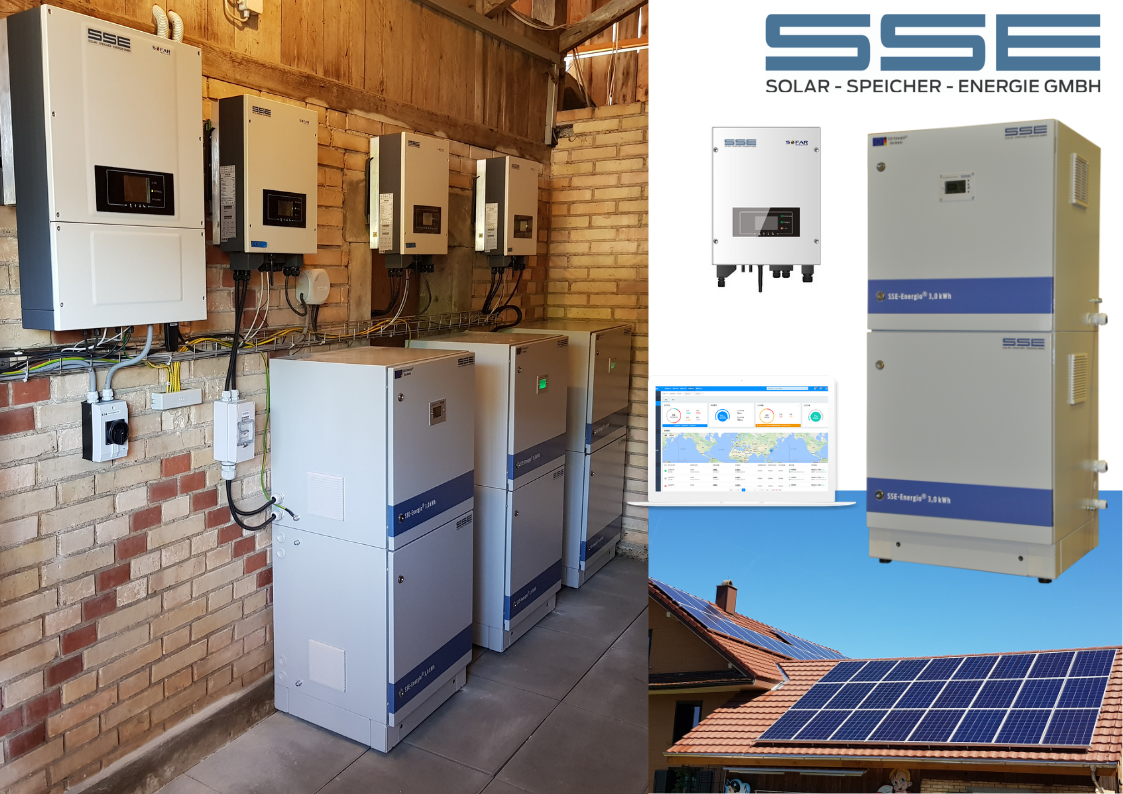

1 SSE-Energio®-Lead-Crystal-TOWER+ Solution - 18kWh-battery-StorageSSE-Energio® three-phase-System incl. USP-function & approx. 13,44kWp-Solar-PV-system
Complete system made by SSE-Energio®
Location: Switzerland / Lucerne region
The scope of the project includes 3 pieces of SSE-Energio®-Lead-Crystal Master-Tower with 6kWh each - Total usable storage capacity 18kWh.
In combination with our high-quality, technically perfectly matched PV and battery inverters, it guarantees the homeowner a maximum economically viable self-sufficiency. A guarantor for long-term stable, cheap and calculable electricity prices and this day & night. The SSE Energio® battery storage facility is with an approximately 13,44kWp PV system - split fed on two surfaces.

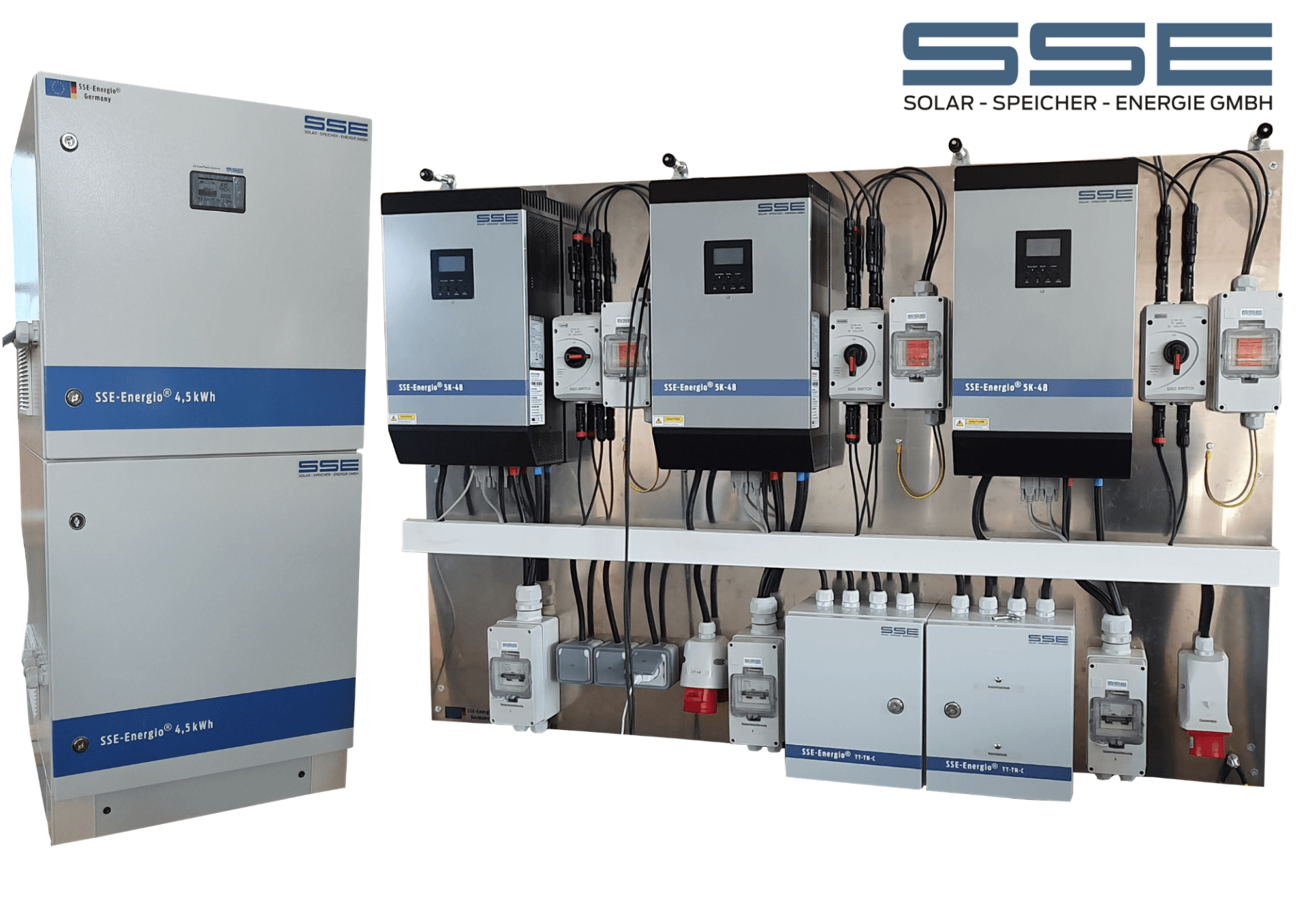

2 SSE-Energio®-Lead-Crystal-Master TOWER 9kWh - 3x 4kW/3x5kVA - 3-phase - according to the SSE-Energio "Plug & Play" principle incl. SSE-my.PV online monitoring

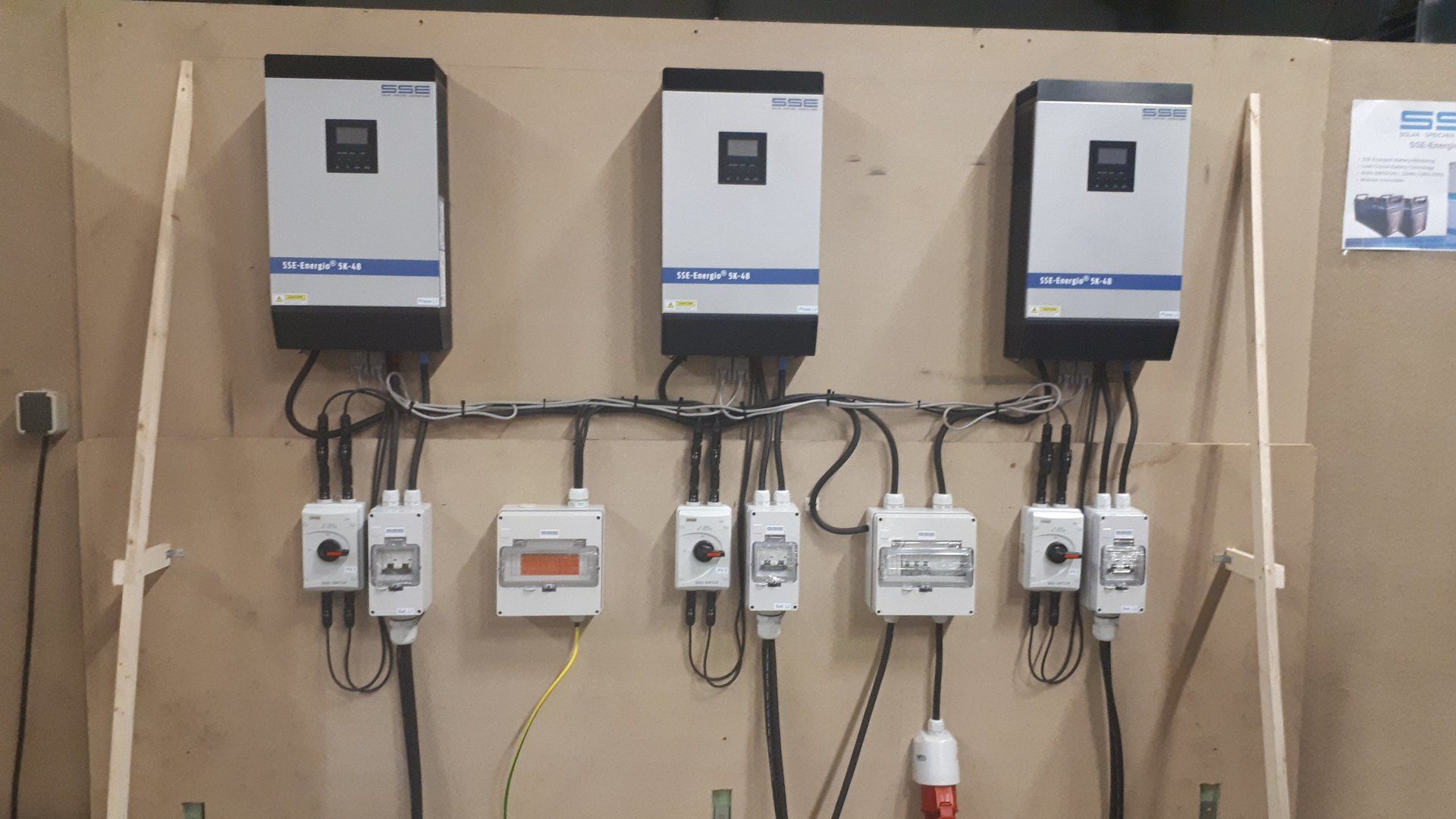

1x9kWh Lead-Crystal TOWER Energio® - 3 x 5K-48-Energio® 60A inverter power 3x 4.0kW / 5kVA with UPS function and generator connection options as well as SSE-my.PV online monitoring. Including complete PV and battery storage accessories, incl. CEE plug, Power-sockets and TT-TN-C switchover - supplied as an SSE-Energio® kit according to the plug & play principle, completely pre-assembled & pre-set
1 piece of SSE-Energio®-Lead-Crystal Master-Tower with 9kWh usable storage capacity (modularly expandable) - 3x5K48 inverters - delivered according to the popular SSE-Energio® modular principle as a "plug & play" solution - after the PV and battery-storage is connected, the system is due to complete pre-assembled ready to run immediately. All PV and battery storage components are installed on a stable aluminum plate with a stable aluminum frame.
3 SSE-Energio®-Lead-Crystal-TOWER 9kWh - 12kW/15kVA - 3-Phase "Plug & Play" - Mobile - Version
Stand-alone solution - Offgrid System - Completely preassembled delivered. Easy installation.
Connection of up to 9kWp PV power possible. 3-phase system - three-phase current. The system was delivered with our SSE my.PV online monitoring, which allows the customer to monitor the system clearly via WiFi and have it always in view.
Customer application: Stand-Alone Offgrid solution for small business without grid connection

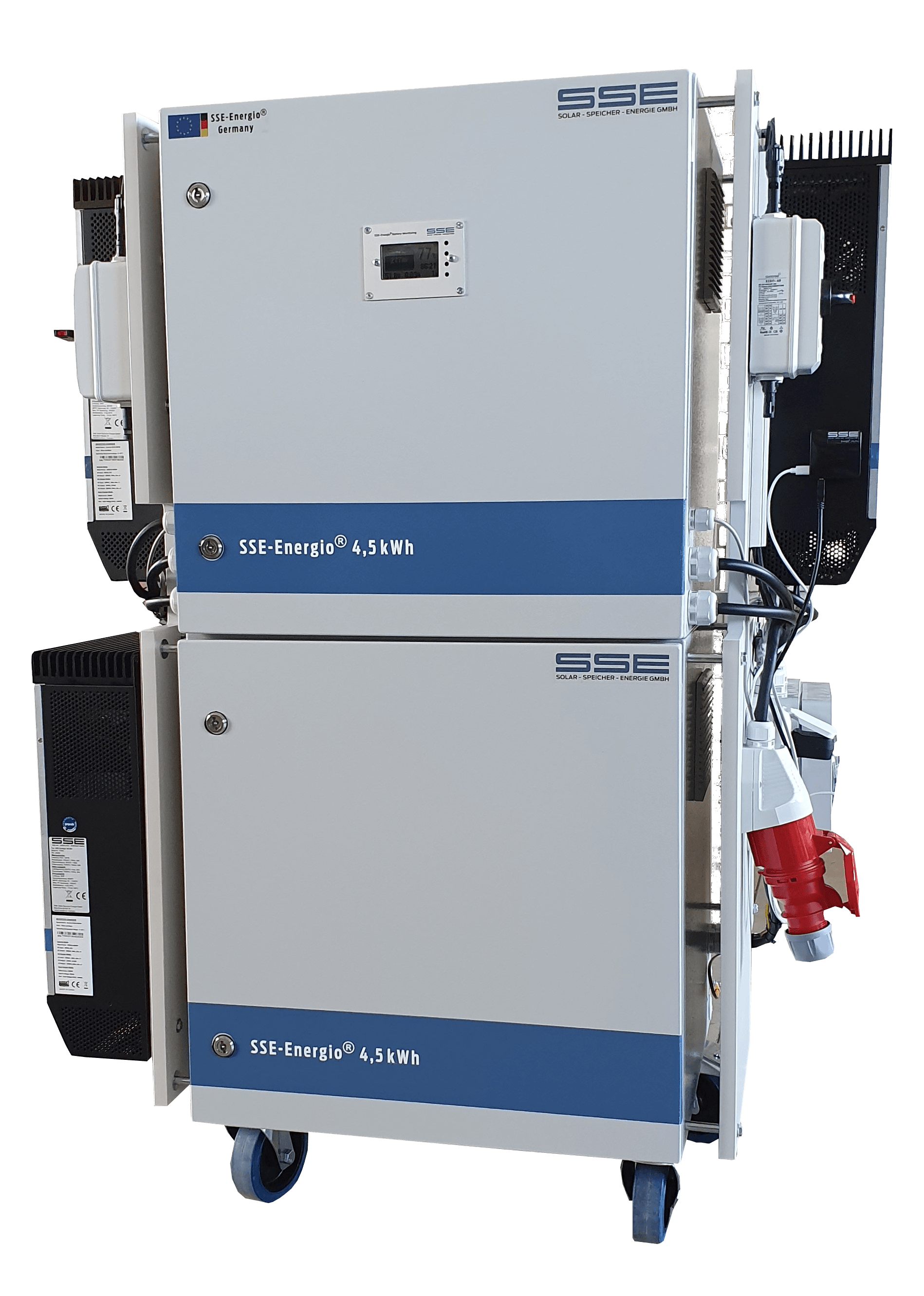

SSE Energio Lead Crystal TOWER 9kWh Side View
SSE-Energio® 3-Phase All-in-One Battery Storage System - Version Crystal-Tower 9kWh - 12kW / 15kVA

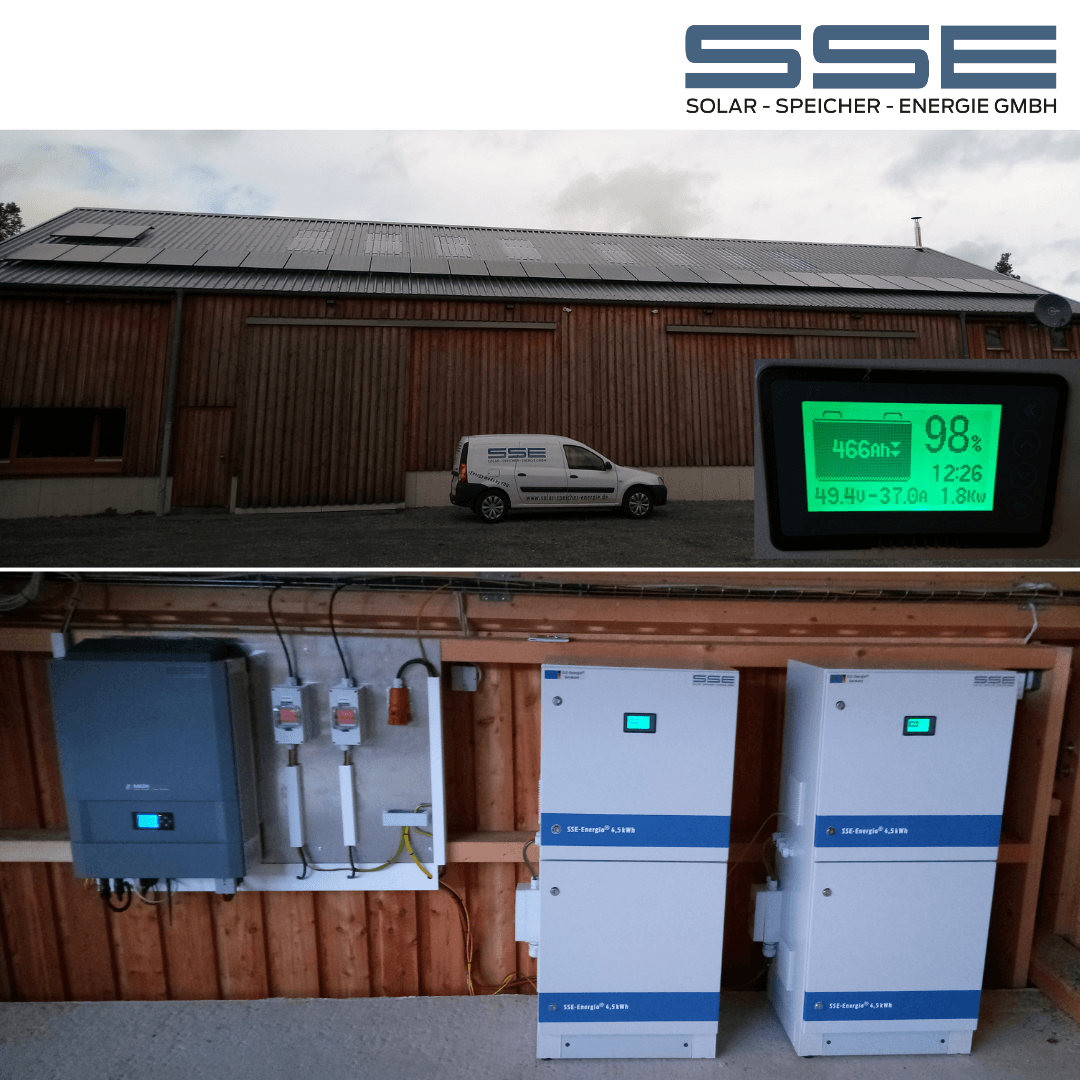

4 SSE-Energio®-Lead-Crystal-TOWER - 18kWh-Battery Storage & 12kW 3-phase-System incl. ca. 9,75kWp-Solar-PV-System
Complete PV and battery storage system
Location: Niedersachsen / Germany
- 9kW / 3-phase system (12kW 3 sec.)
- Including UPS function - emergency power function
- including online monitoring (WiFi / web server integrated)
- compact hybrid inverter mounted on an aluminum plate including surge protection
- Storage capacity: 2x9kWh (50% DoD) - 2x18kWh (100% DoD)
- Long service life of the lead crystal batteries (lithium possible)
- modularly expandable (input / output power and storage capacity)
- Premium mono PV solar system 9.75kWp
5 SSE-Energio®-Lead-Crystal-TOWER+Cube-Combination - 9kWh-Battery-Storage 3-Phase-System 3x 5K-48-Energio® 60A Inverter incl. UPS-function & approx. 9,9kWp-Solar-PV-System
Complete system as SSE kit. Completely pre-assembled and pre-set delivered.
Location: Germany
- 3-phase system
- UPS function (10ms switchover)
- Total power: 3x5kVA / 3x12kW
- Capacity of the memory: 9kWh (50% DoD) - 18kWh (100% DoD)
- Long life-time of Lead Crystal batteries
- Premium PV Solar System 9.9kWp / 36 PV Modules Poly

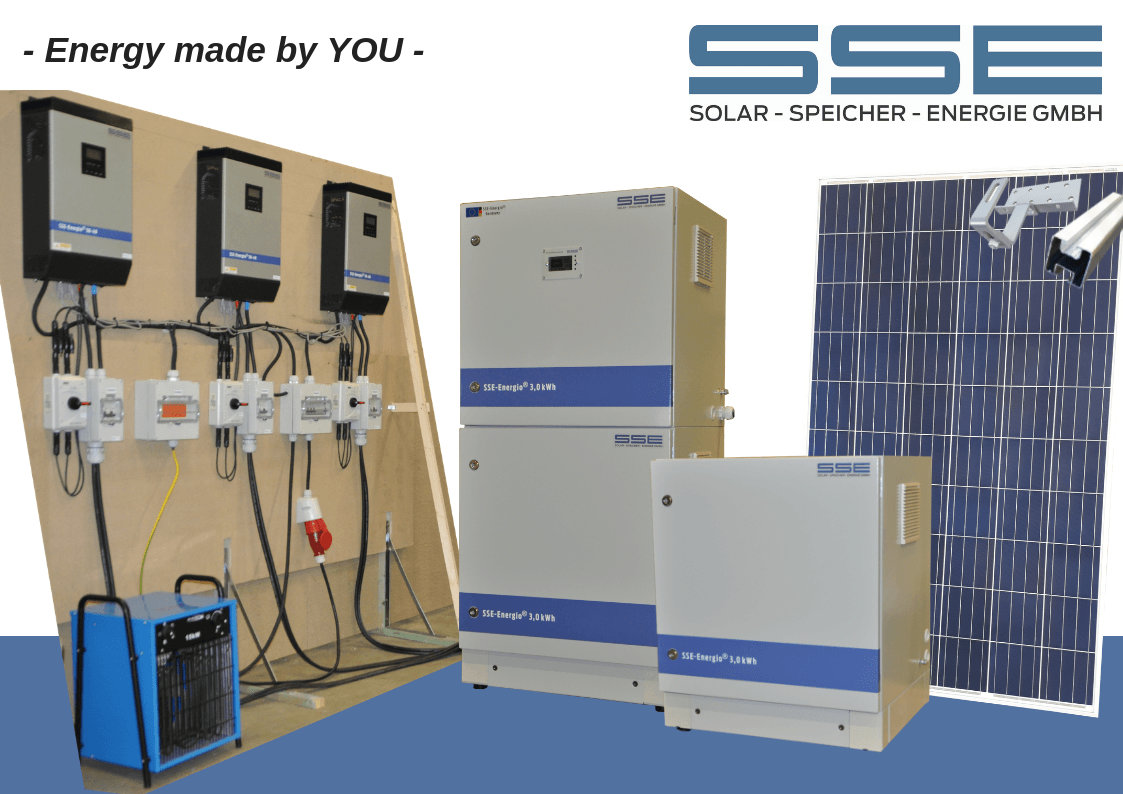

SSE Energio Lead Crystal TOWER + Cube System 1x6kWh + 1x3kWh as a complete kit delivery
Three-phase system 3x5K48 Inverter 60A UPS - incl. complete accessories such as overvoltage surge protection, DC breaker, PV main switch, wiring / plug / grounding cable
The three 5K-48 inverters operate the battery storage system in combination with the 9.9kWp solar PV system in Offgrid operation with reliable, clean and safe power.
By only 10ms switchover from mains to battery storage operation, the system is also approved as an IT solution as a UPS system and economical to operate.
With the SSE modular principle. the system can be expanded at any time.
6 SSE-Energio®-Lead-Crystal-TOWER - House project 2x6kWh Battery-Storage 2x 5K-48-Energio® 60A inverter incl. UPS function & approx. 4.77kWp solar PV system and SSE-Energio® TT-TN C network configuration Switch
In July 2018 it was time. The second SSE Energio® house project was successfully installed in Spain on the Canary Island of Lanzarote.
The system consists of two Energio®-Lead-Crystal TOWERS in Master and Slave versions, each with a storage capacity of 6kWh per TOWER at 50% DoD (at 100% DoD - 2x12kWh). The system was delivered to Spain as a completely prefabricated kit with all components such as DC breakers, main switches, surge protectors and all cables. Following the well-known SSE modular principle, the installation was carried out quickly and easily by a local and certified installation company.

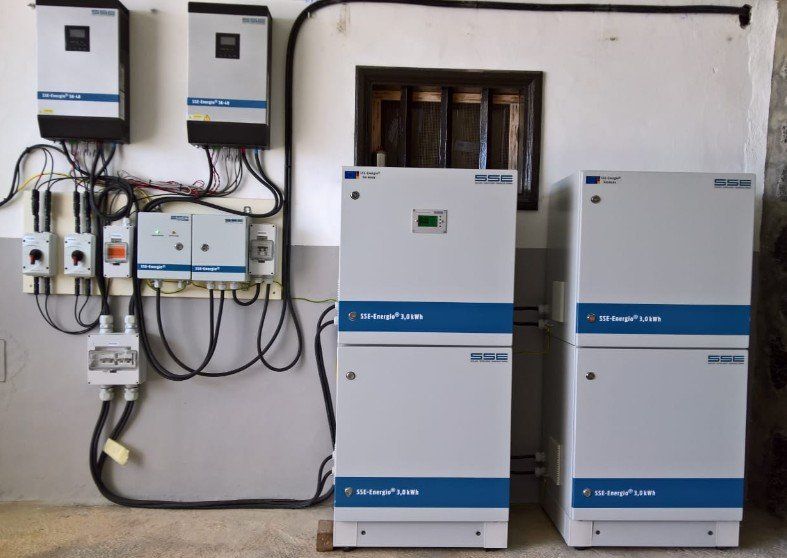

SSE Energio-Lead-Crystal 2x6kWh TOWER system (50% DoD) as a complete kit
2x 5K48 inverters / Energio® TT-TN-C network configuration Switch including PV components as DC breaker, main switch, surge protection

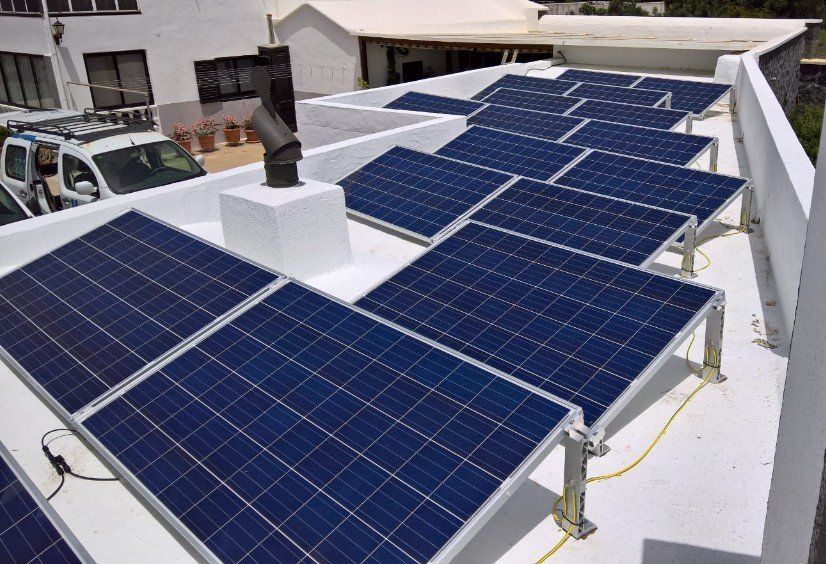

ca. 4.77kWp Solar PV System. A total of 18 pieces SSE PV Polycrystalline modules each with 265Wp with flat roof mounting racks - including complete cable/ connectors / grounding cable
Both 5K-48 inverters incl. UPS function reliably operate the system and provide reliable and safe power to the homeowner for many years. The system is equipped with a necessary in Spain depending on the region network configuration switch SSE Energio® TT TN-C in the new design.
The SSE battery storage system is powered by an approximately 4.77kWp Solar PV System in an Offgrid operation mode.
Pure flexibility while looking to the future. By the SSE modular principle, the system is at any time expandable.
7 SSE-Energio®-House Project 2x3kWh Energio® Battery Storage 5K-48-Energio® Inverter & approx. 2,4kWp Solar-PV-System
Another SSE Energio® house project produces reliable, free and clean energy and allows our customers a completely self-sufficient life - without mains connection.
The system consists of 2 units - 3kWh Energio® Battery Storage with built-in battery monitoring System, a 5K-48 Energio® inverter including UPS function and associated fuses / main switch.
Optionally provided & already installed Equipment: SSE-Energio® TT-TN-C Network Switch
The SSE PV Solar-Power-System has a capacity of approximately 2,4kWp and provides enough energy to supply our satisfied customers day and night with self-generated electricity.
We wish our customers much pleasure with the SSE Energio® Battery-Storage and the SSE PV-Solar-Power-System.
In combination with the SSE Energio® Battery-Storage and the PV-Solar-System, you can use your self made energy in self-consumption and use free electricity day and night

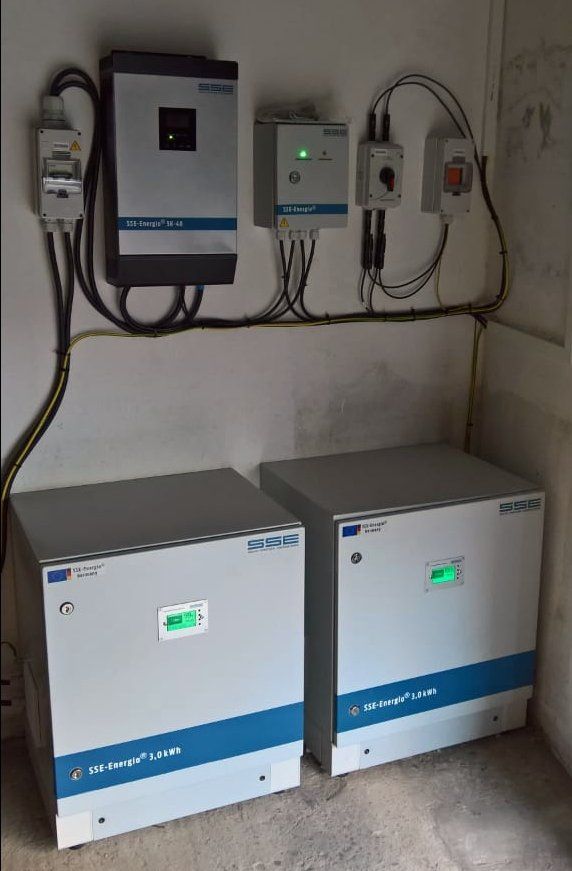

SSE-Energio® 2x3kWh Battery Storage - 5K-48 60A Inverter UPS incl. Pre-installed power-supply switching SSE-Energio® TT-TN-C
SSE 2,4kWp PV Solar-System - flat roof wall mounting
