SSE-Energio® LiFePo4-Lithium

SSE-Energio® LiFePo4-Lithium-Battery Storage

Maximum cycle stability and maximum intrinsic safety through the latest LiFePo4 technology

The SSE-Energio® modular system grows with your requirements and living conditions. An expansion of the storage capacity is possible at any time without high technical and economic effort.

Optimum Solution in Hybrid as well as Offgrid operation

The SSE-Energio®-LiFePo4-Lithium System, in combination with a PV system, enables the autonomy of a household as far as possible and simultaneously fulfills the function of a UPS system (emergency power system).

Whether isolated solution or combination in hybrid operation. Both types of application are optimally supported with the LiFePo4 Storage. The SSE Energio® LiFePo4 lithium storage is designed according to the latest storage technology. The storage has been specially designed to meet the high demands of a todays solar storage system. Highest safety standards and a long life-time are guaranteed even with regularly deep discharge thanks to the latest battery technology.

maximum economic efficiency 24h - solar power

Produce, store and use  solar energy day & night in hybrid or Offgrid Applicatons.

Modular expandable

The future always in focus.
in 2,4kWh (100% DoD) / 2,0kWh (80% Dod) steps

long lifetime
of the storage modules

approx. 15 years at 80% Dod (depth of discharge)
approx. 6000 full cycles

latest
security technology

sophisticated and safe battery technology. Integrated BMS (battery management system in every LiFePo4 memory module

BASIC

2,4kWh (100% DoD) /
2.0kWh (80% DoD)

our smallest Energio®-LiFePo4 storage
Ideal for small PV systems of approx. 2.4kWp
for a power consumption of
about 2,000kWh / year
always modular expandable in
2.4kWh steps

Medium

4.8kWh (100% DoD) /
4,0kWh (80% DoD)

second expansion stage of the Energio®-LiFePo4 family
Ideal for a medium-sized PV system of approx. 4.4kWp
for a power consumption of about 3,500kWh / year
always modular expandable in
2.4kWh steps

Extenstion

7.2kWh (100% DoD) /
6.0kWh (80% DoD)

reflects the average comsumption of a 4 people household
Ideal for a larger PV system of approx. 6.6kWp
for a power consumption of about 4,600kWh / year
always modular expandable in
2.4kWh steps

Alliance Partnerships

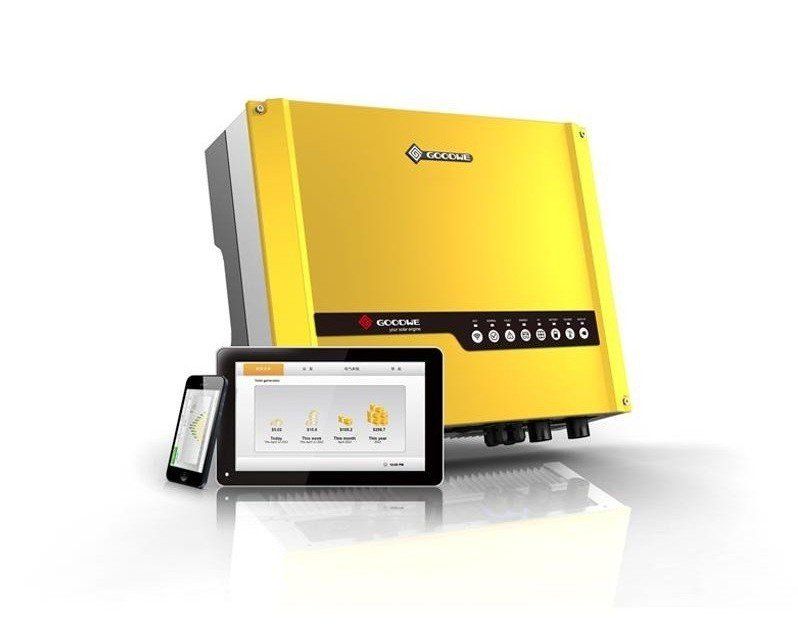

Fig .: Goodwe- SSE-Star Alliance Partner / GW5048ES inverter

The Core

Hybrid inverter

The GW5048D-ES 4600W series is a hybrid inverter for the toughest use where you do not have tocompromise. Here everything was installed which makes sense for today's standard. From the built-in battery charger, battery precedence, network priority, feed-in inverter, PV input up to 5400 Watts of PV power everything is integrated.

The Powerhouse

SSE-Energio-LiFePo4-Lithium Battery-Storage

The high performance Storage - sophisticated, reliable and safe battery technology - LifePO4 (lithium iron phosphate) paired with an elegant and stable battery storage enclosure.

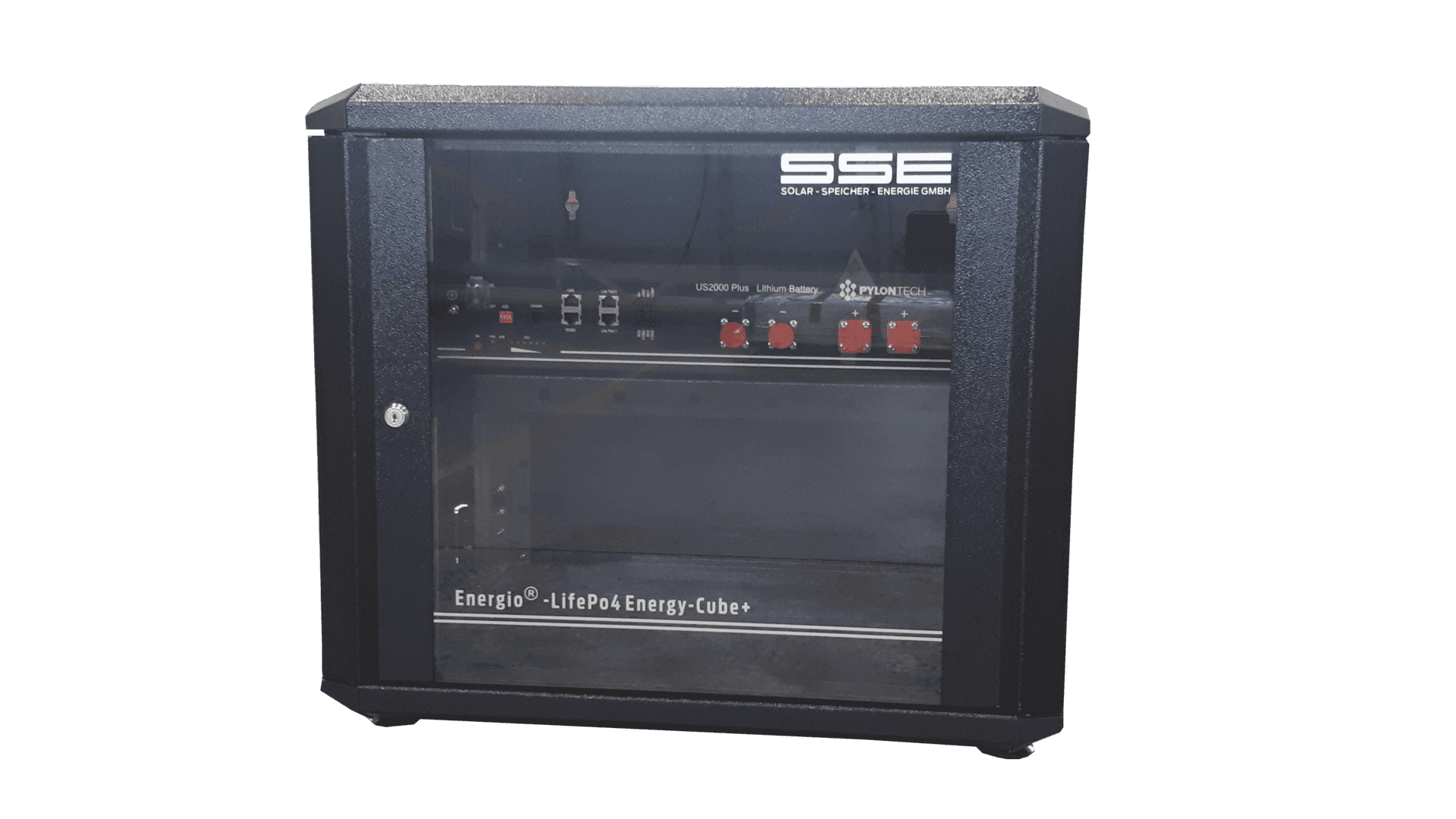

Fig .: SSE Energio® LiFePo4 battery storage - stable construction & Glass-Frontpanel

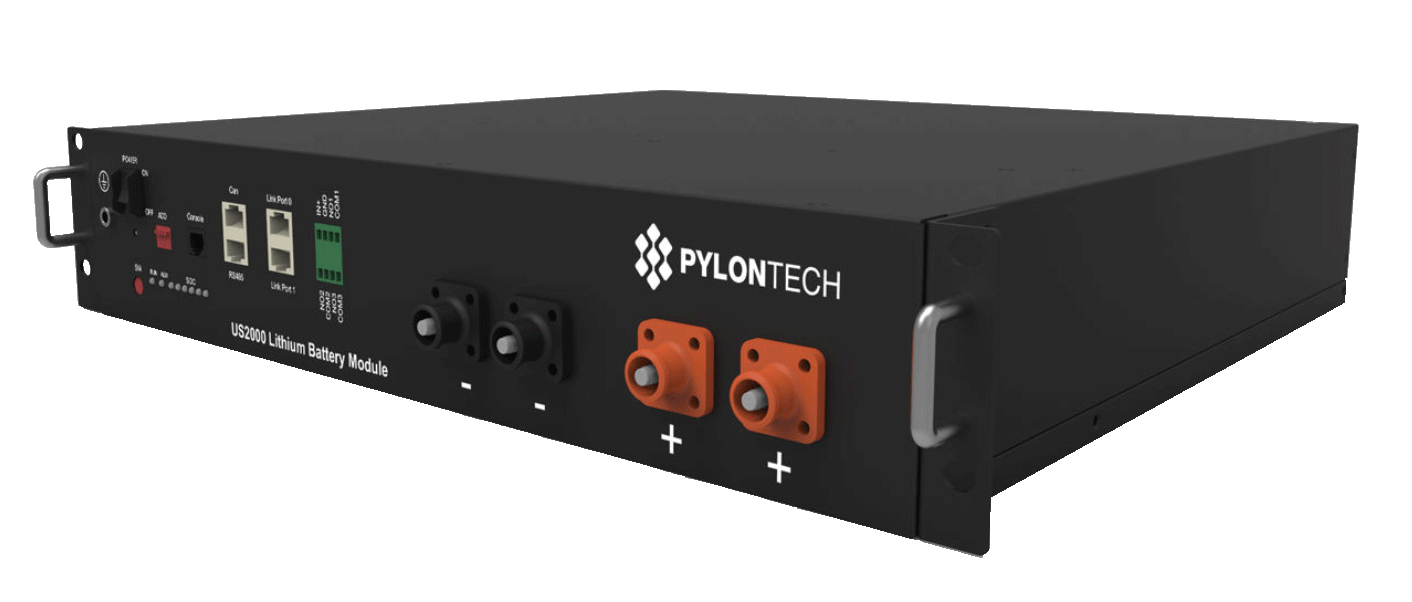

Fig .: Pylontech - SSE-Star Alliance Partner / 2.4kWh storage-module incl. BMS

As flexible as life itself - SSE-Energio® modular

For a max. economic degree of autarchy and suitable performance of your photovoltaic (PV) plant, we recommend the following storage sizes (kWh):

Capacity

Expansion of capacity

Full cycles

from 2,4kWh (100% DoD) /
2,0kWh (80% DoD)
modular expandable in 2,4kWh (100% DoD) /2,0kWh (80% DoD) steps
that. 6000 or 90% DoD

Max. energy extraction

Power

Rated Current

5kW
3.6kW / 5.4kW
20 A

Weight

Dimensions

Installation

2,4kWh - ca. 50kg
4.8kWh - ca. 78kg
7,2kWh - ca. 96kg
9.6kWh - ca. 124kg
approx. (WxHxD): 600x500x450mm
Floor - incl. Stable height adjustable feets

Characteristics

  • Modular expansion at any time / according requirements
  • High Performance Battery-Storage: Sophisticated, Reliable and Safe Battery Technology - LifePO4 (Lithium Iron Phosphate)
  • built-in BMS in each module - absolutely intrinsically safe lithium technology
  • Extremely durable - Life-time over 15 years+ (at approx. 6000 cycles)
  • Cycle-Resistance - approx. 4500 cycles at 80% DOD
  • High charging and discharging capacity - abstraction of up to 5kW per module possible - Very high storage density
  • absolutely maintenance-free
  • SSE battery enclosure - stable construction - Glass-Frontpanel incl. all screw connections, cables (communication, battery, power supply cable), blanking plates complete package
  • Easy installation with the SSE-Modular concept
  • High-end inverter incl. Online app function
  • Complete system all from one source
  • unbeatable price and performance ratio
  • short payback period

SSE-Energio®-LiFePo4-Lithium Battery-Storage:

  • FUTURE ORIENTED
  • SAFE
  • AFFORDABLE
