Tiny-House

SSE-Tiny-House / Mobile-Homes

- Projects / References -

01 Max-Green Tiny-House - SSE-Energio® Basic-Tiny-House Solution 3kVA / 1,5kWh - 0,8kWp PV-Solarsystem incl. SSE VPS/SPN

*** Life-Smart Life-Tiny ***

The SSE-BASIC system consists of:
  • SSE-Energio® 2x120Ah Lead Crystal Batteries 1.5kWh battery storage (extension possible at any time)
- Temp. Range: -40 ° C to + 65 ° C
- 99% recyclable
- In the SSE standard about 12-14 years life

  • SSE-Energio® 3K24 Inverter incl. UPS function
  • SSE-Energio® fuses, Surge protection, main-switch
  • SSE-Energio® PV Modules Poly 3x 265Wp (approx. 0.8kWp) & mounting for wall and/or floor fixing (universal applicable)

Fig .: Tiny-House Max-Green incl. SSE-Energio® Solar-Battery-System
- Even more independence, free independent life. -

02 Tiny-House with SSE-Energio® 5K48 /3,0kWh Battery-Storage
& 1,6 kWp PV-Solarsystem / Complete incl. VPN-SPN und Batterymonitoring

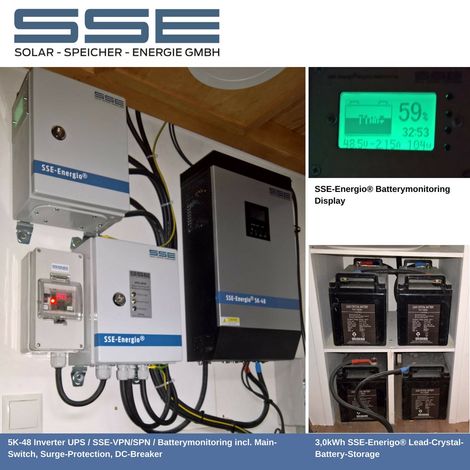

Fig .: built-in SSE Solar-Battery-Storage-System inside the Tiny House
The SSE-5K48 3.0 Tiny House System consists of:
  • SSE-Energio® 4x120Ah Lead-Crystal-Battery Storage 3,0kWh (extension to 6,0kWh + possible at any time)
The temperature range of the batteries is -40°C to +65°C. Our lead crystal batteries (lead crystal batteries) are 99% recyclable, no fire and explosion hazard, no gas out and bloat. No dangerous goods such as Lithium memory modules.
  • SSE-Energio® 5K48 Inverter incl. UPS function
  • SSE-Energio® battery monitoring
  • SSE-Energio® fuses, Surgeprotection, main switch
  • SSE-Energio® PV Modules Poly 6x 265Wp (approx. 1.6kWp) & mounting (flat-roof mounting)
The system is suitable for the operation of medium consumers and white appliances such as e.g. Electric stove, small washing machine, TV, chargers and LED lighting.

03 Koersmann-Tiny House with SSE-Energio® 3 kVA / 1,5 kWh of Battery-Storage and
1,0 kWp PV Solar-System

First Tiny-House with SSE-Energio® Gene

At the end July 2017 the time had come, the first Tiny House made by Koersmann was awarded an SSE-Energio ® Battery storage incl. PV system successfully delivered.

We wish the new mobile home owner a lot of fun and enjoyment of independent and free living. A better combination like with a Tiny-House and the SSE-Energio ® Battery storage for a self-determined, flexible and self-sufficient living is hardly possible.

Direct Customer Feedback, October 2017:

Tiny-House Owner Maria H. is excited about her Tiny-House with the SSE-Energio® System, and has been living fully self-sufficient since the beginning August 2017 without external power.

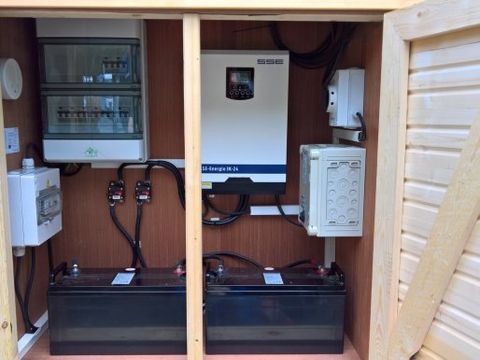

SSE-Energio® 3kVA 60A Inverter UPS, 1,5 kWh Battery Storage incl. SSE Energio
AC reverse polarity protection & SSE star point simulation
First Koresmann Tiny-House with SSE-Energio® Battery-Storage-System,
October 2017 at location Harz / Germany

04 Life Smart - Life Tiny with the SSE-Energio® Tiny-House-Solutions

Even more freedom with the proven Tiny House SSE Energio® Solar-Battery-Storage-System.

The system consists of::
  • SSE-Energio® Tiny-Polarity-Reversal-Protection & Star Point-Simulation
  • SSE-Energio® 2x120Ah Lead Crystal Batteries 1.5kWh Battery-Storage (higher battery capacity available / Optional: extension possible later - SSE modular concept)
- Temp. Range: -40°C to +65°C
- 99% recyclable
- In the SSE standard about 12-14 years life-time
  • SSE-Energio® Inverter incl. UPS function
  • SSE-Energio® fuses, surge protection, main switch
  • SSE-Energio® PV Modules Poly & PV-Rack-System
Optional:
  • SSE-Energio® Tiny Battery-Monitoring-System
+++ For new projects as well as ideal for retrofitting +++
+++ Simplest installation - comes complete as a kit. +++
+++ Almost every Tiny House project possible +++
