SSE-Energio® Tiny-House
Tiny-House-Solutions
SSE-Energio® Tiny-House
Life Smart - Life Tiny
With the right SSE Energio® PV-Battery-Storage
Experience even more freedom ...
By installing a PV-Solar-System in combination with a Battery-Storage, you get an independent, free and self-sufficient lifestyle, especially in a Tiny-House as close as hardly any other living concept. And the best, everything without having to give up the usual familiar living comfort. With the SSE-Energio® Tiny-House-Battery-Storage you are even when the sun is not shining powered and can end the evening with a warm tea.

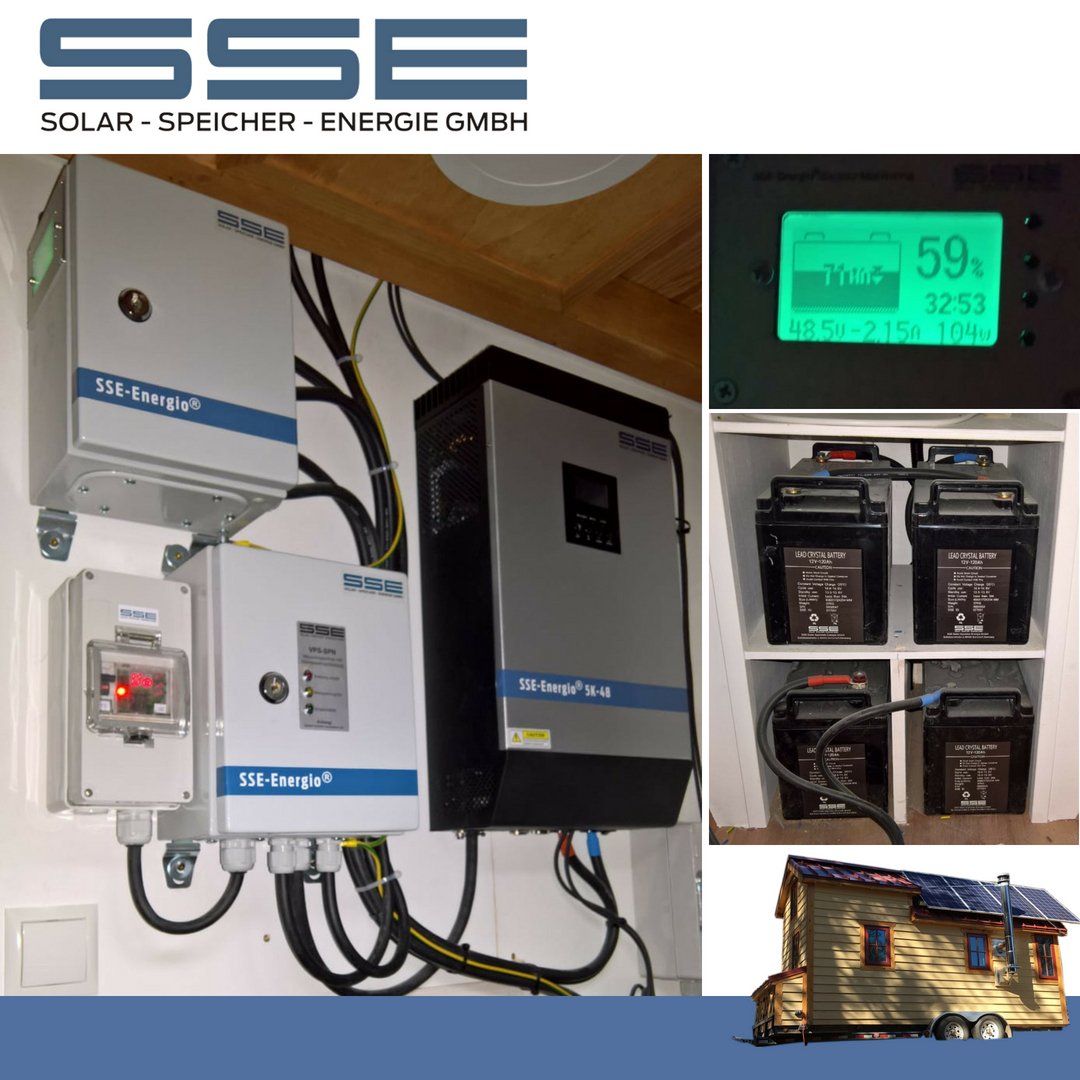

SSE-Energio® 3K-24-Tiny-House-System:
The system consists of an MPPT solar charge controller incl. SSE-Energio 3K-24-Tiny UPS inverter and our 120Ah / 12V SSE-Lead-Crystal-Batteries.
2 pieces of 120Ah Lead-Crystal_Batteries for a 1.5kWh Battery-Storage-capacity
4 pieces of 120Ah Lead-Crystal_Batteries for a 3.0kWh Battery-Storage-capacity
(each with 50% discharge / modular expandable)

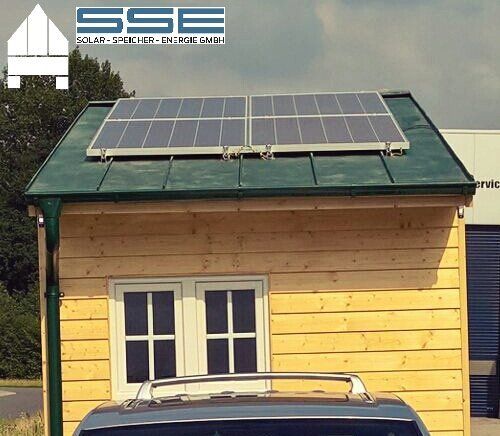

This, in combination with an approx. 1kWp PV-System, enables an efficient intermediate storage of the self-generated energy, which can be used whenever required.

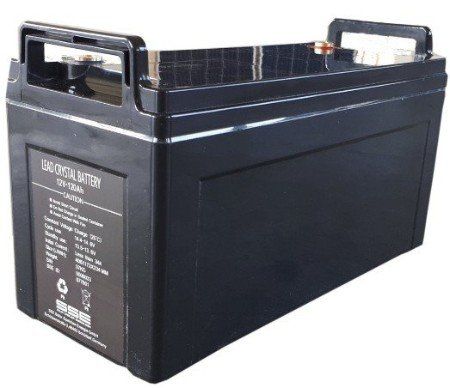

Lead-Crystal-Battery:
Our SSE-Lead-Crystal-Batteries are predestined for Tiny-House projects.
Learn more
They combine all advantages such as long life, safety (no fire or explosion hazard), high temperature resistance, unbeatable performance and high environmental friendliness (99% recyclable) in one product.
Lead-Crystal batteries have a unique technology with five exclusive patented technical innovations that overcome the fundamental flaws of lead-acid, gel, AGM and lithium batteries.

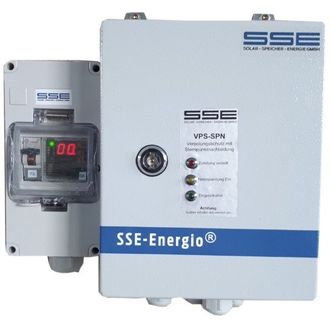

SSE-Energio®-Tiny STN-TN-CSStar point simulation /VPS AC-230 reverse polarity protection combination:
SSE-Energio-Tiny STN-TN-CS neutral simulation / VPS AC-230 reverse polarity protection - estate version 2018
Function / Short Description SSE-Energio®-STN star point simulation:
The SSE Energio starpoint replica fulfills the required protective measures for safe, self-sufficient operation from DIN-VDE 0100-410 and VDE-AR-E 2510 and thus simulates a standard-compliant TN system with a grounded neutral conductor. All protective measures for safe self-sufficient operation (fuses and FI) continue to be active and protect you and your roommates from the everyday dangers of the electric current.
Function / Short Description SSE-Energio® Tiny-VPS Impact Protection:
After the mains plug is plugged in, the system detects whether the supply line has been reversed. In this case, the phase of the supply line lies on the neutral conductor of the inverter system. The system can not be turned on and the power plug (lead-supply) must be turned.
Standard delivery & Options
- SSE-Energio® 3K-24-Inverter or 5K48-Inverter incl. UPS function (10ms switching)
- SSE Lead-Crystal-Batteries 6-CNFJ-120 - 120Ah / 12V (1,5kWh = 2 pieces / 3,0kWh = 4 pieces)
- SSE-Energio® STN-TN-CS neutral simulation / VPS AC-230 reverse polarity protection - estate version 2018
- necessary fuses / Surge protections
- Cabling between inverters and batteries (including VDE cable lug assembly)
- Everything delivered as complete SSE modular system - easy installation, installation and commissioning
Optional:
- PV Solar modules incl. Mounting material - individually designed according to the Tiny-House Project (Customer requests, structural restrictions, etc.)
- Solar cable incl. Plug for PV modules
- Battery monitoring
- Installation & commissioning
In addition to our SSE-Energio® Product Solutions, we offer you a fully comprehensive professional project consulting service. The design of the Battery-Storage is individually tailored to the respective Tiny-House project.
Under- or over-dimensioning of the storage, as well as the PV-Solar-System, is precluded by the intensive exchange of information and on the basis of customer benefit analysis, already during the inquiry process.
SSE-Energio® Tiny-House Batterymonitoring
