SSE-Energio®-Powerbox
SSE-Energio ® Powerbox
Ideal for mobile and net-independent applications
self-sufficient
mobile
Outdoor
Power everywhere and at any time
The SSE-Energio Powerbox is a solar power bank for a self-sufficient power supply. Ideal for use in camping and outdoor areas. Due to the robust design, the Powerbox can be easily set up and used outdoors. The connected solar modules and the integrated SSE lead crystal battery guarantee a reliable and stable power supply, wherever you need it, day and night.

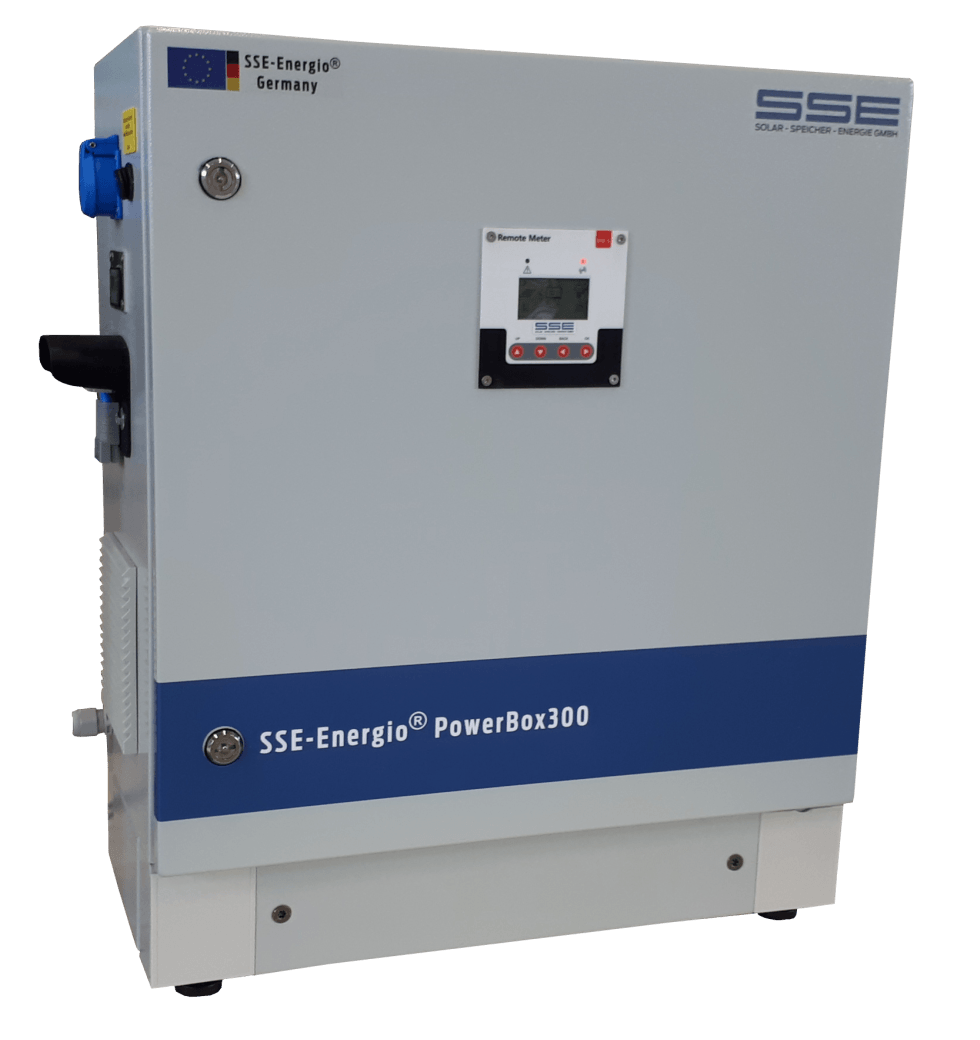

Abb.: SSE-Energio® Powerbox 300 - Speicherkapazität: 0,75kWh / 12V
Dimensions: (WxHxD) = approx. 600x700x300mm
SSE-Energio® Powerbox
Self-sufficient Energy supply
The integrated inverter allows the operation of conventional 230V consumers via a universal Schuko socket directly on the Powerbox. Upon customer request, other connections such as USB charging interfaces for tablet or smartphone and / or charging via a 12V car port / cigarette lighter are also possible.
Thanks to the external battery charger, a battery can be charged independently of the integrated battery packs in the Powerbox.
- Simple commissioning - "SSE modular concept" - supplied as standard and pre-assembled
- proven and tested - technology that works
- Robust & Durable Components - Highest Industrial Grade
- usable as UPS / emergency power
- Can be combined with PV, Wind-Mirco systems
- many connection options for consumers such as Schuko socket 230V, 12V car / cigarette lighter, USB
- integrated SSE lead crystal memory
- No risk of fire or explosion. No dangerous gases. No dangerous liquids.
- Long life in SSE standard between 12-14 years (50% DOD)
- 99% recyclable. Significantly lower environmental impact. ISO 14001 certified
Powerbox 300
All-in-One Solar-System
Up to 2 PV modules with a total output of max. 550WP. The internal 12V / 120Ah Lead Crystal battery is charged via the integrated MPPT charge controller (12V / 40A). An external terminal in the Powerboxtür informs about all important data. An additional external battery charge can be connected at the same time.
The integrated inverter has a constant power of 230V / 300W (peak power 600W). Optionally, an additional USB and a 12V socket are available.
- Integrated display for displaying the state of charge and the PV power
- Integrated inverter for direct connection of 230V consumers
- Charging the batteries via solar modules and / or Mirco Wind turbine

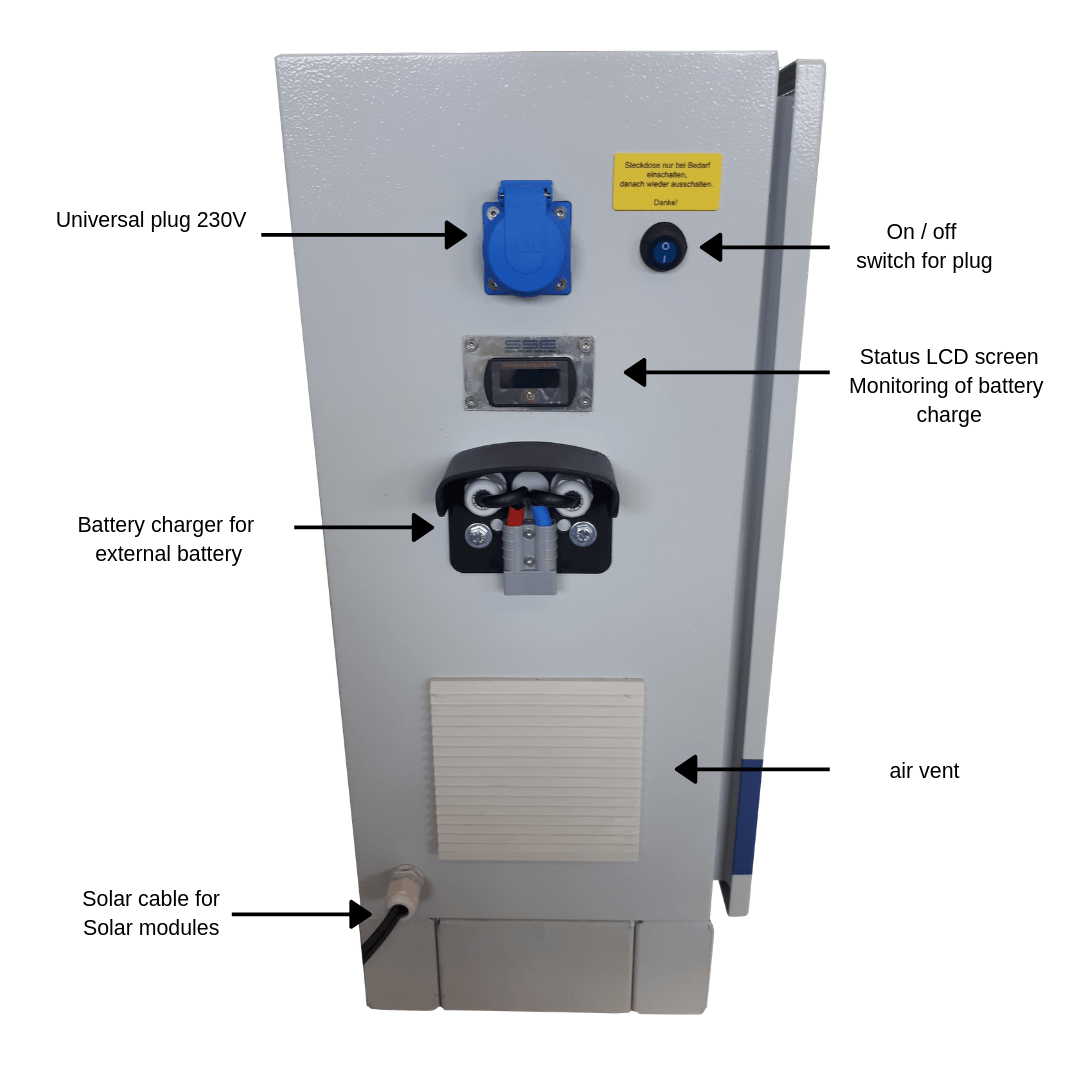

Fig .: SSE-Energio® Powerbox 300 - connections
Fig.: SSE-Energio® Powerbox 5K/300
SSE-Energio® Powerbox 5K/300
The powerhouse for more independence
The integrated 5K48 inverter with integrated charge controller ensures a reliable, independent and economical 230V power supply, and this wherever it is needed - completely self-sufficient! Consumers can be supplied and operated directly at the PowerBox via the built-in connections.
Fields of application are versatile, such as Mobile Homes, Caravanning, Camping, Offgrid Chalets / Houses, as an additional stand-alone system to operate directly consumers via the PowerBox.
- "SSE Modular Concept" - - delivered maximum preset and preassembled easy commissioning
- proven and tested technology that works
- Robust & Durable Components - Highest Industrial Grade
- usable as UPS / emergency power
- Can be combined with PV, Wind-Mirco systems
- Integrated display for displaying the state of charge and the PV power
- Integrated inverter for direct connection of 230V consumers
- Charging the batteries via solar modules and / or small wind plant
- Many connection options for consumers such as 230V 230V socket - specific customer requirements can be taken into account
- Integrated SSE lead-crystal storage with 3kWh of usable storage capacity
- Variants: as fixed installation or as mobile version, equipped with wheels
- highest industrial quality - outdoor installation possible
- up to 3.0kWp PV power possible
- Memory and PV power can be expanded modularly
- 4.0kW / 5kVA power
SSE-Energio Powerbox
with 3.0kWh storage capacity
Up to 3.0kWp of PV power can be connected to the system. The storage capacity and the PV power can be modularly extended thanks to the proven SSE-Energio® principle.
- Digital display - installed in the housing of the Powerbox. Display of voltage, current consumption, current charging power, current charge state of the battery storage in% and as real value of the remaining capacity in Ah
- Optional: online monitoring of SSE-Energio® my.PV via WLAN. Display of u.a. current PV power, current consumption, memory level, statistics - historical history
Fig.: SSE-Energio® Powerbox 5K/300 - Storage capacity: 3.0kWh
Dimensions: (WxHxD) = approx. 600x1320x500mm- connection examples
Characteristics
- unbeatable price and performance ratio
- Island plant / Offgrid
- Customized Solutions / Customized Solutions
- MPPT solar charge controller
- UPS applications
- from 0.75kWh storage capacity - usable
- 12V, 24V & 48V systems available
- Modular concept / expandable as needed and application
- compact design
- Industrial quality - IP24 protection / outdoor installation possible
- sophisticated, reliable and environmentally friendly battery technology (up to 99% recyclable)
- SSE Energio® battery monitoring
- Optional: SSE Energio® my.PV online monitoring
- long life of the batteries (about 12 years)
- easy installation and operation
- low-maintenance system
