SSE-Solpay Balcony PV
SSE-Solpay Balcony PV-Solar-System
"Plug & Save" - Principle
Produce and use your own ecologically produced solar energy. The universally applicable SSE-Solpay "Plug & Play" solar system is the simple and inexpensive entry into the solar technology and serves to reduce the electricity costs in every home. The solar system for power generation is suitable for every household, whether for the homeowner or renter!
How an SSE "Balcony" module works
The solar module converts the daylight and sunlight into electricity. The solar module also produces electricity when it is cloudy - as soon as daylight falls on the module, electricity is fed into the house network. The electricity is fed by the inverter via the nearest power socket into the household electricity network. Thus, the electricity costs for the electrical base load are reduced and a partial household electricity demand is saved.
Plug & Safe-Principle:
Assemble the SSE-Solpower "Plug & Save" System
Insert plug
Save electricity costs from the first second
Ideal for:
- homeowner
- Tenants - finally as a tenant to save electricity costs
- Frustrated electricity customers
- Technically minded
- Ecologically thinking
Advantages at a glance
Reduction of electricity costs
save up to approx. 290 kWh/year with one balcony module (with 265 Wp)
Easy installation - Plug & Save
also suitable for ordinary person. No renovation work required (just plug and play)
Acts like a "Power-Meter-brake"
Counter "turns" slower
Modular
expandable at any time. Small space requirement. Inverter directly on the PV module.
Maximum Economic Efficiency
already amortized after approx. 4 to 5 years
SSE-Solpay-Solar-Balcony-Module:
25-year Warranty
On Micro-Inverter & Solar Module
- Solar for everyone -
Whether homeowner or tenant
Mounting Systems
available for almost every house or solar project
Safety First!
Standard-Compliant:
VDE-AR-N 4105
built-in ENS
1 piece- SSE-Solpay "Balcony"-System
payback periodabout 4 to 4.5 years
Income after 20 years, about 2,300.00€
modular expandable at any time
for detailed calculation see SSE Solpay brochure
2 pieces- SSE-Solpay "Balcony"-System
payback periodabout 4.25 to 4.75 years
Income after 20 years, about 3,900.00€
modular expandable at any time
for detailed calculation see SSE Solpay brochure
Alliance Partnerships
NEP Micro Inverter BDM Series
- Simplest installation (SSE "Plug & Save" principle) - with integrated cables and connectors
- 25-year manufacturer's warranty
- Top quality - best quality in the Mirco inverter market. Main components from Japan, Germany and Norway - unique - the "Mercedes" among the micro inverters
- highest quality standards - i.a. the only one micro inverter approved in Japan. Certified worldwide for c-ETL, SAA, TUV, VDE-AR-N 4105, VDE 0126, G83 / 2, EN50438
- designed to connect individual PV modules and perform a DC / AC conversion.
- High efficiency with a maximum of 96.3%.
- Integrated monitoring and power network communication with a BDG-256 gateway - can be ordered separately or retrofitted at any time
- Integrated GFDI
- Integrated AC cable

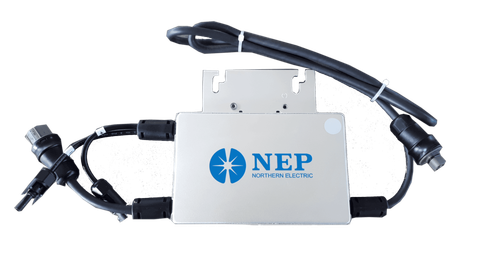

Fig.: Micro Inverter NEP BDM-250-EU - incl. Cable & plug
The Core
Single-Micro-Inverter
- NEP BDM250-EU with ENS incl. approx. 2 meters connection cable
- Solar module up to max. 285Wp per module
"Double heart"
Dual-Micro-Inverter
- NEP BDM600-EU with ENS incl. approx. 2 meters connection cable
- 2 pieces of solar modules up to max. 345Wp per module

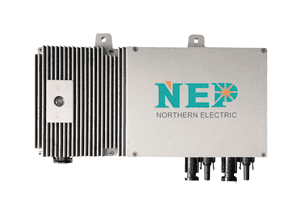

Fig.: Micro Inverter NEP BDM-600-EU - incl. Cable & plug
Premium PV Solar-modules
- Quality PV Modules Poly & Mono
- at least 280Wp - for standard modules
- Classic & Black-Line PV-Modules
- 12-year manufacturer's warranty (German/EU warranty)
- 25-year PV power warranty: approx. Min. 80%
- Highly efficient 5-busbar technology
- highly transparent, self-cleaning glass, resistant to environmental influences: ammonia & salt fog resistance
- extremely strong frame
- Simplest installation (SSE "Plug & Save" principle) - with integrated cables and MC4 plugs suitable for NEP-BDM microinverters
- PV standard as custom sizes also available - depending on the project requirements
- PV modules special sizes - Made in Germany -

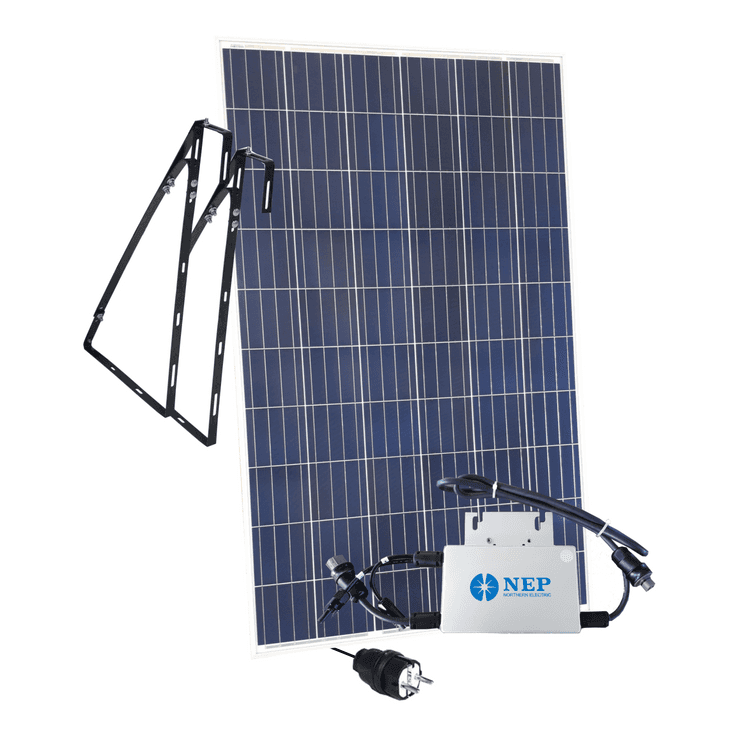

SSE-Solpay-Balcony-PV-module
Inform now and start saving from the first second
